Titorelli

Titorelli is an optional data-science service that reinterprets the Kafka messages a Gateway emits, producing hourly aggregations used for analytics and billing, and to speed up the escrow manager’s startup. It sits entirely on the Gateway’s secondary data path: if Titorelli is down, query serving and payments are unaffected.

Source: edgeandnode/titorelli⁠.

What Titorelli Does

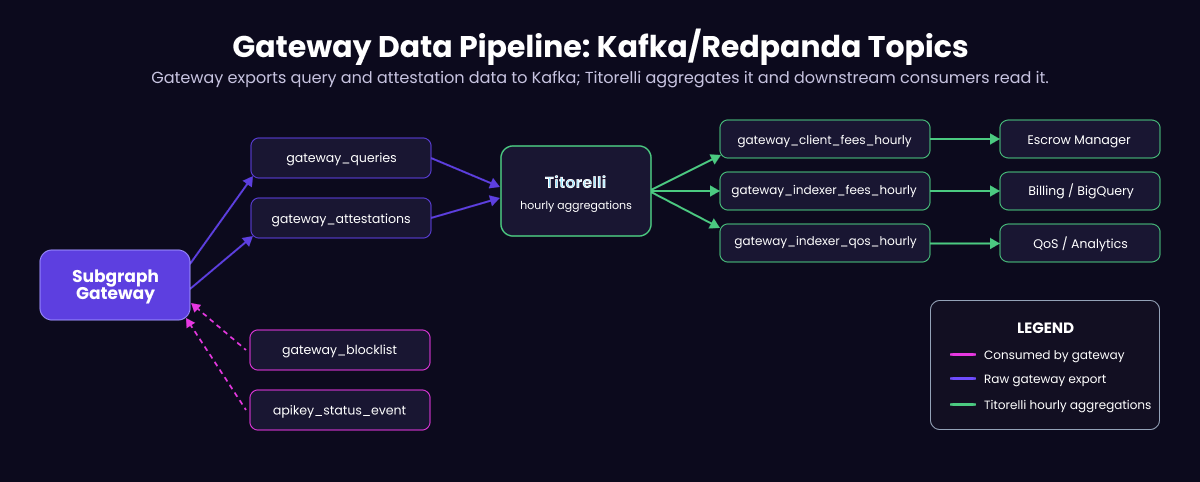

The Gateway exports raw operational data into Kafka topics (primarily through gateway_queries and gateway_attestations). Titorelli consumes the Gateway’s query stream and rolls it up into hourly aggregations, emitting three derived topics:

Topic	Aggregated per hour	Used for
`gateway_client_fees_hourly`	Per consumer / API key / deployment: GRT and USD fees, query count, success rate, average response time	Client billing, usage analytics
`gateway_indexer_fees_hourly`	Per signer to receiver: GRT fees owed to each Indexer	Faster escrow-manager startup
`gateway_indexer_qos_hourly`	Per Indexer / deployment / chain: success and failure counts, average seconds behind, average latency, average fee	Indexer QoS monitoring, network analytics

Why Operators Run Titorelli

Faster Escrow Manager Startup: the escrow manager can read pre-aggregated gateway_indexer_fees_hourly instead of replaying raw receipt history to compute outstanding debt. This is currently the primary documented reason to run Titorelli.
Client Billing: gateway_client_fees_hourly gives a ready-made, per-API-key fee and usage feed for invoicing.
QoS and Analytics: gateway_indexer_qos_hourly provides hourly Indexer performance data for dashboards and network health monitoring (outlined in Tracking QoS).

Each message is a protobuf with a timestamp (aggregation window start, unix ms) and a repeated list of aggregation rows. Full schemas are in the Titorelli README.

Titorelli Configuration

Titorelli is configured with a single JSON file pointing at the Kafka cluster:

1{2  "kafka": {3    "bootstrap.servers": "example.com:9092",4    "group.id": "titorelli",5    "security.protocol": "sasl_ssl",6    "sasl.mechanism": "SCRAM-SHA-256",7    "sasl.username": "example_username",8    "sasl.password": "example_password",9    "ssl.ca.location": "./example.crt"10  }11}

When multiple Gateway environments share one Kafka cluster, the Gateway’s kafka_topic_environment setting appends an environment qualifier to topic names (for example, gateway_queries_staging). Make sure Titorelli consumes and produces the matching environment-qualified topics.

When Operators Can Skip Running Titorelli

Titorelli is optional. A minimal Gateway can serve queries and pay Indexers without it: the escrow manager will simply do more work at startup, and an Operator will need another path for client billing and QoS analytics. Run Titorelli when an Operator wants efficient escrow startup, per-client fee reporting, or Indexer QoS aggregation out of the box.
